13.8m Van Aerial Platform K38p

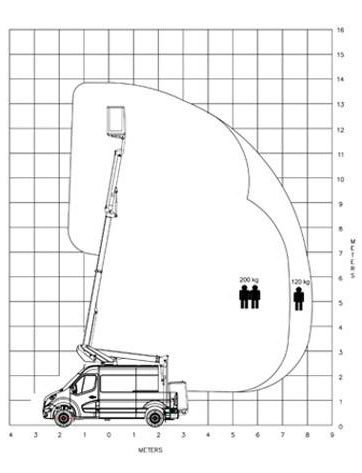

The K38P is a telescopic aerial work platform mounted on a Renault Master van. This telescopic boom lift allows it to reach up to 14 meter working at height and 8.20 meter max outreach. Its working load capacity can handle up to 200 kgs of material and equipment. The aerial platform has a load cell system which measures the load in the basket. This switches between a safe working load of 120Kg and 200Kg. The 120Kg working load offers 8.20 m outreach and the 200Kg working load offers 7.10m outreach.

This van mounted aerial work platform is powered by a diesel engine but can also be fitted with an entire electric engine. A perfect solution when it comes to work at height in urban areas.

The basket is spacious with its 125 x 75 x 110 cm dimensions. Thus the basket can welcome 2 operators with their equipment without any risk of injuries. About equipment, one of the main advantages of this van-mounted lift is its incredible storage space inside the vehicle itself. Whether you need to transport small tools or heavier and bulkier equipment, you will have no trouble finding room to store them. The interior fittings are custom-made based on your business needs. No unnecessary storage is provided.

This is a huge advantage that saves you from deploying 2 vehicles. As a result, you save money on your operations

Built up by Klubb, one of the most leading aerial platform manufacturers in Europe, this van telescopic lift features a full hydraulic lift system. Compared to an oil lifting system, the hydraulic lifting system has a longer lifespan of at least 12 years. The hydraulic system indeed allows the lifting mechanism to suffer less from the detrimental effects of friction caused by the repeated movements of the arm. If the arm of the lift is less worn, you will need to maintain it less often. This will result in further savings.

This compact aerial platform on van is suitable for use in urban areas where narrow streets and pedestrian lanes are not an obstacle to their movement and deployment. This does not prevent them from being used for work at height in more rural areas. 2 A-Frame outriggers help the vehicle and the platform to be stabilized during operation. Thus it is a perfect solution for all pruning work, electrics, sign installation or even cleaning of surfaces at height.



mobile workshop

Mobile Workshop

All necessary tools and equipment can be stored directly on the vehicle. This on-board storage eliminates the need for additional vehicles. It allows you to have everything you need at your fingertips, reducing downtime and improving workflow efficiency.


Compact Size

Van aerial platforms often have a more compact footprint compared to some larger, stand-alone platforms. This smaller size can be a significant advantage when working in tight or restricted areas where larger vehicles might have trouble maneuvering. The compact size also makes it easier to navigate through heavy city traffic or crowded job sites.


Reduced Operational Costs

The integrated design of these platforms often means lower fuel consumption than using separate vehicles for transportation and lift operation. Additionally, having a combined vehicle and lift reduces the need for costly equipment rentals, as well as the maintenance costs associated with multiple machines

Technical Specification

  • Engine start and stop from the basket
  • Independent emergency electric pump with features basket
  • Secure access to the working platform
  • Hoses and cables are inside the boom structure
  • Aluminium boom for optimum stability

Examples of Vehicles


To enhance efficiency, we've engineered models without stabilizers, a feature typically found on Van Mounted Access Platforms. Our van-mounted cherry pickers are meticulously designed to distribute weight evenly across the vehicle, providing stability for various operations. These cherry picker vans prove to be exceptionally useful in maintaining green spaces and other areas where overgrown vegetation might obstruct visibility or access. For instance, we have successfully marketed our van cherry pickers to professionals in the Arborist and groundskeeping sectors. Similarly, for tasks requiring work at lower heights, these vans are ideal for upkeep of signage and the installation and servicing of surveillance systems.

But these vans equipped with boom lifts offer more than just a means to safely work at elevated heights. They also afford ample internal storage space for specialized tools. In collaboration with our French partner, Mobitec France, we offer both interior and exterior customization options for your cherry picker van. Beyond merely providing a mobile workshop, we also prioritize the safety and security of both you and your equipment.

13.8m Van Aerial Platform K38p Isoli


Klubb van-mounted aerial platforms are a versatile solution, facilitating diverse high-altitude tasks across various industries. Key applications lie within utilities and telecommunications, where the aerial platforms assist in overhead line maintenance and installations.

In the tree care sector, these van aerial platforms are invaluable for landscaping and pruning operations. They are also crucial for facilities maintenance activities such as window cleaning, roof repairs, and exterior painting.

The van lift platforms contribute to public lighting and signage installation, offering elevated work positions. With the capacity to install CCTV and other security systems at height, the platforms also prove beneficial in the security industry.

Last but not least, they aid construction tasks and are often utilized in media production for achieving elevated camera angles. Overall, Klubb’s van-mounted aerial platforms offer flexible, safe, and efficient high-reach solutions across several industries.

Possible types of vehicles

  • NISSAN NV400 L2H2
  • IVECO DAILY (wheelbase 3520)
  • MERCEDES SPRINTER (wheelbase 3665)
  • VOLKSWAGEN CRAFTER (wheelbase 3640)
    For vehicle options, please contact us before ordering

Additional information



Working load

200 kg


8.20 m


With outriggers
